Name: China Customized Caterpillar Asphalt Paver Suppliers, Manufacturers, Factory - Quotation - ARAN
Brand: Aran
SKU: 142044966

Specifications：

Performance Characteristics:

● Advanced design & optimized configuration, operable for paving high-grade roads’ surface.

● Full hydraulic drive with uniform speed controlled by microcomputer, digital display and trouble-shooting function.

● Amount of materials augered to both sides are controlled by ultrasonic sensors to achieve optimum proportion and uniform distribution, minimizing segregation.

● High-accuracy leveling sensors ensure mat’s surface flatness.

● National patented far infrared radiation surface heating burner, uniform heat effect, fast heating rate with high efficiency, environmentally friendly and energy-saving.

● Powerful double tampers with screed vibration can achieve high pavement quality for both the base and surface courses.

● Imported centralized lubrication system, automatically charging lubricating grease to all high temperature bearings, to improve machine reliability.

● Key components such as hydraulic elements, speed reducers and wear resistant steel plates are imported from world class manufacturers to ensure product quality as well as increase the life of the paver.

● Paver wireless remote control operating system (optional).

Performance Characteristics:

Description	Unit	ASPE 90
Paving width	mm	3000-9000（stabilized soil 7500）
Max. paving thickness	mm	320
Theoretical productivity	t/h	700
Paving speed	m/min	0-16
Running speed	km/h	0-2.39
Drive system		Full hydraulic
Machine weight	t	25-29.5
Engine model & power		SC9DK240G3 Shanghai Diesel Engine,177kW
Track shoe width	mm	320
Hopper capacity	t	16
Auto. Leveling unit		China made( parts imported)
Auger diameter	mm	400
Screed extension mode		Hydraulic extension&Mechanical joint
Tamper impact stroke	mm	Primary：3, subsidiary：0,3,6,9,12
Tamper impact times frequency	times/min	0-1500
Screed vibration	Hz	0-50
Screed heating mode		Far infrared-radiation heating
Display		Color graphic display Germany
Controller		RC Series Germany
Centralized lubrication		Imported
Material level unit		China made

Company Profile

Zhenjiang ARAN Machinery Co., Ltd. inherited the original technology of Zhenjiang Road Machinery Company’s products and has been constantly improving product performance and quality. 3D computer-aided design technology has been fully adopted in the company. With strong ability of independent innovation and development, the company has a number of patents granted. Zhenjiang ARAN provides reliable quality assurance for the mass production of high-tech road machinery, and necessary conditions for the research and development of new products, experimental work and high-tech industrialization.

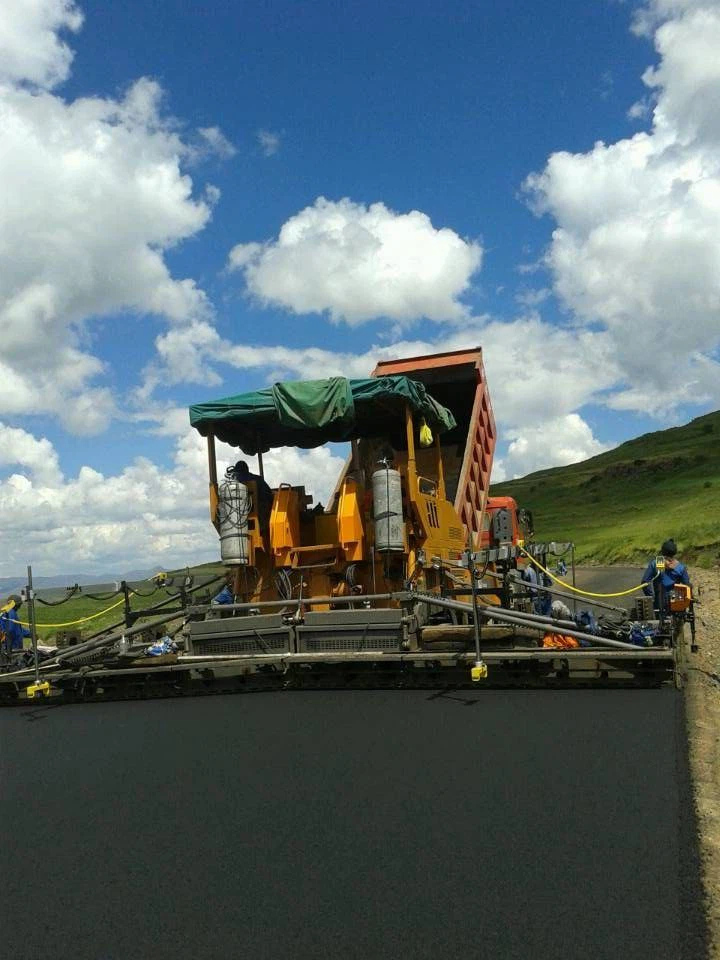

Application Scenes

1(001)
