Concrete Road Construction Equipment

Specifications：

AHT4000/AHT6000/AHT8000/AHT7500S

* ：Optionally, the basic paving width is 2500mm or 3500mm, and the paving width is widened by 250mm or 300mm interval.

It is customized by the customer according to the actual construction requirements.

**：option 1 -- QSB6.7-C220-30, Cummins, 163 kW/2200rpm;

option2--TAD850VE, Volvo160kW/2200rpm.

***：option -QSB6.7-C260-30, Cummins, 194 kW/2200rpm

All information and specifications are correct at the time of print and are subject to change without prior notice.

Features

一,Performance Characteristics:

AHT4000/6000/8500/7500S concrete paver is fully hydraulically driven, centralized computer control with real-time monitoring and self-diagnostics, and an automatic leveling and traceability system.

● OVERVIEW

This high standard, innovative, advanced and practical machine is a dedicated equipment to construction of concrete road and square & airport pavement.

●HIGHLY FLEXIBLE CONCRETE SLIPFORM PAVING

The concrete slipform paver can precisely pave standard concrete road pavements with width from 3.0 m - 8.5 m and thickness up to 450 mm.

●EFFICIENT ENGINE MANAGEMENT SYSTEM

The ECO mode setting automatically adjusts engine power to ensure fuel-efficient diesel consumption and low noise emissions. The AHT6000/8500/7500S are equipped with VOLVO TAD552VE/TAD851VE/TAD852VE engines, featuring cutting-edge, high-performance engine technology (up to 210 kW/ 290HP output power) that meets EC Stage IIIA emissions standards.

●HIGH-PRECISION STEERING AND DRIVE SYSTEM

Auto levelling and tracing systems to ensure paving flatness, straightness and smoothness at road bends. The intelligent control system and anti-skid steering system for extremely smooth operation ensures the straightness of accurate concrete paving.

●CONCRETE COMPACTION MECHANISM

The paver is equipped with a hydraulic vibrator drive, with standard 14 hydraulic connections (optional: 9 or 18). Simultaneous operations of spreading, scraping, vibrating, tamping and extruding at the same time when paving support layer and concrete road.

●RUGGED MACHINE DESIGN and DURABLE PAVING MOLD

The rugged design guarantees consistent high-output precise concrete paving under difficult site conditions. The paver can be compatible with 8.5 m (or 9 m) series of metric paving molds. The 3.0 m to 8.5 m series come standard with a wear sole and can be equipped with an optional crown profile.

●PERFECT ERGONOMICS AND HANDLING

The operator's platform features ergonomic design, user-friendly operating concept and exceptional visibility, full hydraulic independent drive, micro-computer with display and self-diagnostic capability. Ergonomically designed with smart controls for operational comfort and ease.

●FULLY MODULAR MACHINE DESIGN

The fully modular design makes it possible to flexibly modify and upgrade with new options according to user's requirements. Compact dimensions and minimal retrofit requirements ensure easy loading and economical transportation. The dowel bar inserter or oscillating beam and super smoother can remain mounted to the machine during transport.

Features (9)

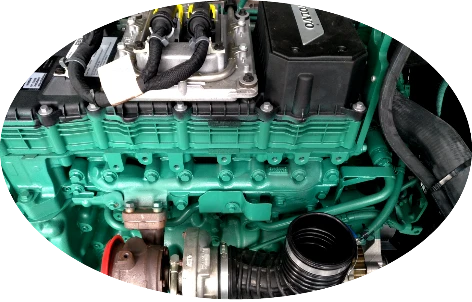

Engine

Volvo / Cummins water-cooled engine, powerful, high-torque reservation,

low fuel consumption, emission in conformity with Europe environment.

Vibration Device – Super-high frequency, strong vibration, high density of top-side paving

Auto Levelling System – Auto levelling and tracing systems ensure paving surface flatness and road straightness.

Scraping Plate – Two hydraulic cylinders to control concrete quantity incoming to shaping-template, which could go up & down wholly or up & down independently at either lh or rh.

Travelling System

Two hydraulic-drive crawlers and microcomputer control ensure pre-set constant speed, correct straight-line running and smooth steering around curves

Perfect Ergonomic Design and Operation Concept

The ergonomically designed operator's platform features user-friendly operating concept and exceptional visibility, which makes the job easier for the operator.

Centralized Lubrication

Centralized lubrication can auto. Charge lubrication grease to high-temperature and motive components, lengthen wear-out period effectively, greatly improve reliability of tamper and feeding.

STANDARD OR OPTIONAL EQUIPMENT

1. Hydraulic Vibrators

The paver comes standard with 14 hydraulic connections to power the hydraulic vibrators (9 or 24 optionally available)

2. Separate Side Bar Inserters

Side tie bar inserters on the equipped on both sides automatically insert tie bars to pave adjacent road pavements

3,Longitudinal Tie Bar Inserter (Only for AHT8500/ SF7500S)

Longitudinal tie bars are inserted automatically to prevent the slabs from drifting apart at the longitudinal joints.

4,Optional SUPER SMOOTHER

The super smoother made of high-quality material ensures perfect surface quality

5,Optional Oscillating beam inserter (Only for AHT7500S)

The eccentric-powered, heavy-duty oscillating beam with automatic lifting function when the machine stops can remove any irregularities in the concrete pavement surface.

6,Optional DBI inserter (Only for AHT7500S)

The extensive dowel bar inserter (DBI) mounted on the machine frame (Only for AHT7500S) has the optional automatic inserting function that can insert the dowel bar into the exact position.

ADVANTAGES OF AHT4000/6000/8500/7500S SERIES SLIPFORM PAVERS

1. Powerful Engine

The powerful engine guarantees effective concrete paving in the optimum power and torque range at all times.

2. Performance-Optimized Eco Mode Engine Management

The ECO mode can automatically adapting engine output according to performance requirements to guarantee optimum engine efficiency, economical diesel consumption and low noise emission.

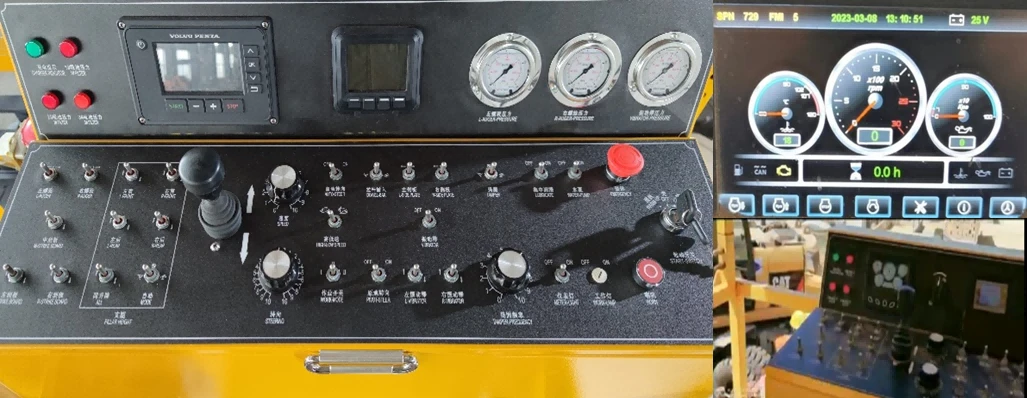

3. Standardized Operating Concept, Ergonomically Optimized, Clearly Organized Control Panel

With its state-of-art screen and clear, language-neutral symbols, the control panel promotes productive on-site operations. The standardized, self-explanatory operating concept used on various models offers better synergy effects.

4. Easy access to the maintenance and inspection points minimizes maintenance requirements.

5. The high-quality machine control system using ZJAR PAVING's proprietary software increases both operating safety and the paver's range of applications.

6. SERVICE DIAGNOSTICS SYSTEMWIDIAG

ZJAR PAVER, the service diagnosis system with a standardized interface, allows technicians to quickly troubleshoot errors directly on site.

7. Transverse Slope Control System

Innovative electronic transverse slope control technology developed by ARAN significantly reduces the machine's response time, resulting in the desired paving effect.

8. Speed Adjustment(Machine walking and speed regulation)

The computer-assisted speed adjustment of each individual track unit enables specifications to be adhered to with pinpoint precision, even when paving around curves.

9. Rapid Conversion during Transport and Easy Transport

The minimal effort required to convert the paver during transport reduces operating cost. Maneuverability and compact machine dimensions make transport easy.

Application Scenes：

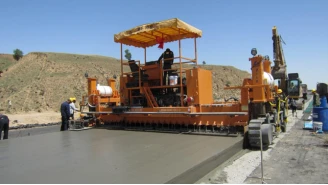

Scenes of Square and Airport Construction

Scenes of Road and Tunnel Construction

one-step forming with good and neat corner and edge

Precise operation with the automatic leveling system leads to great evenness of pavement surface.

In many regions of Southeast Asia, it is required to place steel meshes inside the concrete pavement.

And some projects require longitudinal tie bars to be placed in concrete forms, which can also be pre-placed manually.

Application of the mechanism for automatically inserting pull bars

Working Principle:

Concrete is poured with concrete mixture in front of the spreader; The paver moves forward at a certain speed; The working mechanism begins to work. The screw spreader separates the accumulated concrete in the left and right directions and distributes it evenly in front of the scraper. The height of the temporary scraper can be hydraulically adjusted to scrape the cement concrete to the desired pre-paving thickness. The variable frequency plug-in vibrating rod vibrates at a certain frequency to expel the air mixed in the concrete during the mixing process, and then eliminate the porosity.

Square Construction

.

Urban road construction in Southeast Asia, where halves of the road pavement were paved respectively

In a very short period of time, the concrete road paving workload was quickly finished through high intensity construction. In Cambodia

Greatly improved construction quality and work efficiency won high praise from local owners

Construction scenes in Africa in Nigeria, Madagascar, Senegal and Mauritius

Coordinated paving operation, bring high work efficiency

Paving construction, if you need to avoid obstacles, several simple concrete formworks are needed to complete the re-paving.

Class 1 Highway in Puerto Princess, Philippines

Two Options Of Loading for Sea Transportation:

No need to remove large parts; whole machine shipped in the flat rack container; when transported to the site, it can work after mounting a small number of accessories, as shown in the Pic above.

Disassemble the crawler track into independent small parts and put into the container respectively. When delivered to the work site, much assembly work is needed to do before it can be put into construction.

Loading for land transportation:

Goods loading for land transportation: Lift the paver onto the platform trailer

Drive the paver onto the platform trailer from the side-mounted dedicated walking support frame.

Long distance road transport by flatform trailer
