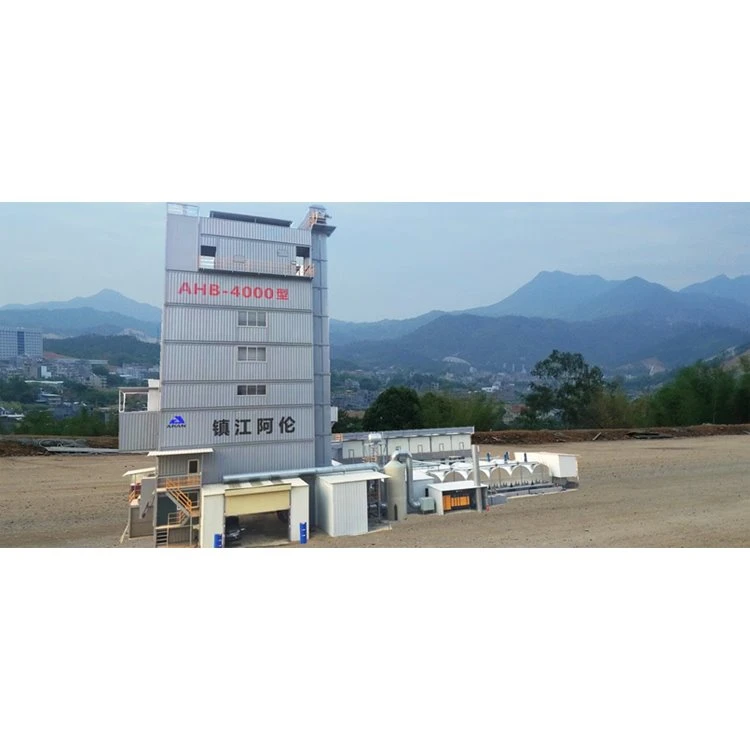

Asphalt Batch Mix Plant
• Optimized arrangement of the drying drum blades, high thermal efficiency;
Send Inquiry
Product Details ofAsphalt Batch Mix Plant
Features of AHB Series Asphalt Mixing Plant:
• Building block type modular design, compact structure, convenient transportation and fast installation; • Optimized arrangement of the drying drum blades, high thermal efficiency; • Selected imported or domestically-made light or heavy oil burners; • Coarse grading of cold aggregate by belt feeding, frequency control speed regulation, easy and accurate adjustment; • High-efficiency vibrating screen, low vibration of the frame structure; • All-electronic weighing sensor, accurate and reliable; • New type of double-horizontal shaft mixer, capable of rapid and uniform mixing with stable quality; • Computer management and control system, featuring functions such as formula storage, report printing, fault monitoring and alarming. |
Speculations of AHB Series Asphalt Mixing Plants
Model | Unit | AHB5000 | AHB4000 | AHB3000 |
Production capacity | t/h | 300-400 | 240-320 | 180-240 |
Mixing ability | kg/batch | 5000 | 4000 | 3000 |
Drying drum size | m | Æ3x11 | Æ2.9x10 | Æ2.6x9 |
Vibrating screen size | 6 layers 6 sizes | 6 layers 6 sizes | 5 layers 5 sizes | |
Aggregate measurement accuracy | % | ±0.3 | ||
Powder measurement accuracy | % | ±0.25 | ||
Asphalt measurement accuracy | % | ±0.15 | ||
Noise at the operator's ear | dB(A) | 70 | ||
Dust emission concentration | mg/Nm3 | ≤100 Bag filter * | ||
Aggregate hopper capacity | m3 | 12x6 | 12x6 | 10x5 |
About ZJAR
Zhenjiang Aran Machinery Co., Ltd. is a professional manufacturing company for road machinery. It focuses on the research and development of road machinery products for more than 30 years, and has accumulated rich experience in the design and manufacture of road machinery.
FAQ
Q1、What are our advantages compared with other manufacturers/factories?
1. Mature technology -- Our slipform pavers were developed based on the technology introduced from the US in 1990s, and have been improved continuously since ever. Our road machineries all have been widely proven since 1990s with customers across the world.
2. Competitive Prices -- We are the original manufacter and all products are delivered to the customer directly from our factory, without fees for an agent.
3. Quick Response -- Our team is consisted of a group of diligent and enterprising people, working 24/7 to respond clients inquiries and question all the time. Most problems from clients can be solved within 12 hours after clients raise the questions.
4. Fast Delivery -- Normally we can arrange the delivery of the products in 45 days. Thanks to the superior location, we can arrange an immediate delivery after production.
Q2、Which payment terms can we accept?
Normally we can work on T/T basis or L/C basis.
On the T/T basis, 50% down payment is requried in advance, and 50% balance shalll be settled before delivery.
On the L/C basis, a 100% irrevocable L/C without "soft clauses" can be accepted. Please seek the advice from the individual sales manager whom you work with.
