Concrete Slipform Pavers

(In Southeast Asia)

Specifications：

* ：Optionally, the basic paving width is 2500mm or 3500mm, and the paving width is widened by 250mm or 300mm interval.

It is customized by the customer according to the actual construction requirements.

**：option 1 -- QSB6.7-C220-30, Cummins, 163 kW/2200rpm;

option2--TAD850VE, Volvo160kW/2200rpm.

***：option -QSB6.7-C260-30, Cummins, 194 kW/2200rpm

All information and specifications are correct at the time of print and are subject to change without prior notice.

Features

Performance Characteristics:

AHT4000/6000/8500/7500S concrete paving machines are designed with full hydraulic drive, centralized computer control with real-time monitoring and self-diagnostic capabilities, and auto levelling and tracing system.

● OVERVIEW

This high-standard, innovative, advanced and practical machine is a dedicated equipment for constructing concrete road and square & airport pavement.

●EFFICIENT ENGINE MANAGEMENT SYSTEM

The ECO mode setting automatically adjusts engine power to the current performance requirements. The AHT6000/8500/7500S are equipped with VOLVO TAD552VE/TAD851VE/TAD852VE engines, featuring cutting-edge, high-performance engine technology (up to 210 kW/ 290HP output power) that meets EC Stage IIIA emissions standards.

●HIGHLY FLEXIBLE CONCRETE SLIPFORM PAVING

The concrete slipform paver can precisely pave road pavements with width from 3.0 m to 8.5 m and thickness up to 450 mm.

●RUGGED MACHINE DESIGN and DURABLE PAVING MOLD

The machine's rugged design guarantees consistent high-output precise concrete paving under difficult site conditions. The paver can be compatible with 8.5 m (or 9 m) series of metric paving molds.

●PERFECT ERGONOMICS AND HANDLING

The operator's platform features ergonomic design, user-friendly operating concept and exceptional visibility, full hydraulic independent drive, micro-computer with display and self-diagnostic capability, smart controls for operational comfort and ease.

●HIGH-PRECISION STEERING AND DRIVE SYSTEM

Auto levelling and tracing systems ensure paving flatness, straightness and smoothness at road bends. The intelligent control system and anti-skid steering system ensures the straightness of accurate concrete paving.

●FULLY MODULAR MACHINE DESIGN

The machine's fully modular design makes it possible to flexibly modify and upgrade with new options according to user's requirements. Compact dimensions and minimal retrofit requirements ensure that the paver can be easily loaded and economically transported. Depending on the configuration, the dowel bar inserter or oscillating beam and super smoother can remain mounted to the machine during transport.

Features (9)

Engine

Volvo / Cummins water-cooled engine, powerful, high-torque reservation,

low fuel consumption, emission in conformity with Europe environment.

Vibration Device

Super-high frequency, strong vibration, high density of top-side paving

Auto Levelling System

Auto levelling and tracing systems ensures paving surface flatness and road straightness.

Scraping Plate

Controlled through two hydraulic cylinders to control concrete quantity incoming to shaping-template, which could go up & down wholly or up & down independently at either lh or rh.

Travelling System

Two hydraulic-drive crawlers and microcomputer control ensure pre-set constant speed, correct straight-line running and smooth steering around curves

Perfect Ergonomic Design and Operation Concept

The ergonomically designed operator's platform features user-friendly operating concept and exceptional visibility, which makes the job easier for the operator.

Centralized Lubrication

Centralized lubrication can auto. Charge lubrication grease to high-temperature and motive components, lengthen wear-out period effectively, greatly improve reliability of tamper and feeding.

STANDARD OR OPTIONAL EQUIPMENT

1. Hydraulic Vibrators

The paver comes standard with 14 hydraulic connections to power the hydraulic vibrators (9 or 24 optionally available)

2. Separate Side Bar Inserters

Side tie bar inserters on the equipped on both sides automatically insert tie bars to pave adjacent road pavements

3,Longitudinal Tie Bar Inserter (Only for AHT8500/ SF7500S)

Longitudinal tie bars are inserted automatically to prevent the slabs from drifting apart at the longitudinal joints.

4,Optional SUPER SMOOTHER

The super smoother made of high-quality material ensures perfect surface quality

5,Optional Oscillating beam inserter (Only for AHT7500S)

The eccentric -powered, heavy-duty oscillating beam with automatic lifting function when the machine stops can remove any irregularities in the concrete pavement surface.

6,Optional DBI inserter (Only for AHT7500S)

The extensive dowel bar inserter (DBI) mounted on the machine frame (Only for AHT7500S) has the optional automatic inserting function that can insert the dowel bar into the exact position.

ADVANTAGES OF AHT4000/6000/8500/7500S SERIES SLIPFORM PAVERS

1 . Powerful engine

The powerful engine guarantees effective concrete paving in the optimum power and torque range at all times.

2. Performance-Optimized Eco Mode Engine Management

The ECO mode can automatically adapting engine output according to performance requirements to guarantee optimum engine efficiency, economical diesel consumption and low noise emission.

3. Standardized Operating Concept, Ergonomically Optimized, Clearly Organized Control Panel

With its state-of-art screen and clear, language-neutral symbols, the control panel promotes productive on-site operations. The standardized, self-explanatory operating concept used on various models offers better synergy effects.

4. Easy access to the maintenance and inspection points minimizes maintenance requirements.

5. High-Quality Machine Control System

The high-quality machine control system using ZJAR PAVING's proprietary software increases both operating safety and the slipform paver's range of applications.

6. SERVICE DIAGNOSTICS SYSTEMWIDIAG

ZJAR PAVER, the service diagnosis system with a standardized interface, allows technicians to quickly troubleshoot errors directly on site.

7. Transverse Slope Control System

Innovative electronic transverse slope control technology developed by ARAN significantly reduces the machine's response time, resulting in the desired paving effect.

8. Speed Adjustment(Machine walking and speed regulation)

The computer-assisted speed adjustment of each individual track unit enables specifications to be adhered to with pinpoint precision, even when paving around curves.

9. Rapid Conversion during Transport and Easy Transport

The minimal effort required to convert the paver during transport reduces operating cost. Maneuverability and compact machine dimensions make transport easy.

Application Scenes：

Scenes of Square and Airport Construction

Scenes of Road and Tunnel Construction

AHT8500 one-step forming with good and neat corner and edge

Precise operation with the automatic leveling system leads to great evenness of pavement surface.

In many regions of Southeast Asia, it is required to place steel meshes inside the concrete pavement.

And some projects require longitudinal tie bars to be placed in concrete forms, which can also be pre-placed manually.

Application of the mechanism for automatically inserting pull bars

Working Principle:

1.The concrete truck pours concrete mixture in front of the spreader; the paver moves forward at a certain speed; The working mechanism begins to work.

2.The screw spreader separates the piled concrete along the left and right directions and evenly distributes it in front of the scraping plate.

3.The temporary scraping plate, with the height hydraulically adjustable, scrapes the cement concrete to the required pre-paving thickness.

4.The frequency conversion plug-in vibrating rod vibrates at a certain frequency to expel air out that blends in the concrete during mixing and then to eliminate pores.

Urban road construction in Southeast Asia, where halves of the road pavement were paved respectively.

Class 1 Highway in Puerto Princess, Philippines

In a very short period of time, the concrete road paving workload was quickly finished through high intensity construction. In Cambodia

Greatly improved construction quality and work efficiency won high praise from local owners

Construction in Africa in Nigeria, Madagascar, Senegal and Mauritius

Coordinated paving operation, high efficiency

Paving construction, if you need to avoid obstacles, several simple concrete formworks are needed to complete the re-paving.

Two Options Of Loading for Sea Transportation:

No need to remove large size parts such as the crawler track; whole machine shipped in the flat rack container; when transported to the construction site, it can work after mounting a small number of accessories, as shown in the Pic above.

Disassemble the crawler track of the whole machine equipment into independent small parts and put into the container respectively. When delivered to the work site, there is a lot of assembly work before it can be put into construction.

Loading for land transportation:

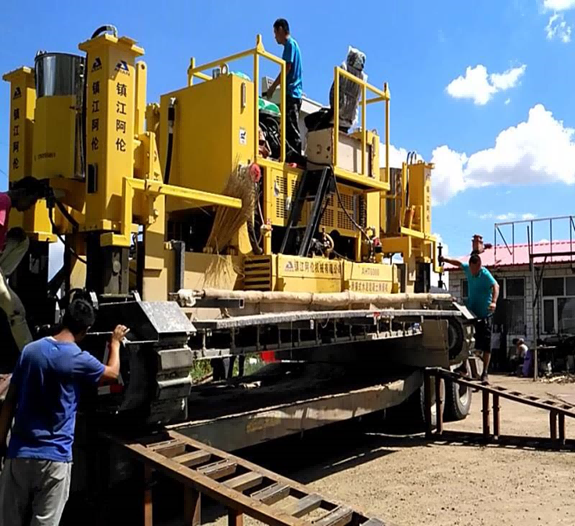

Goods loading for land transportation: Lift the paver onto the platform trailer

Long distance road transport by flatform trailer

Drive the paver onto the platform trailer from the side-mounted dedicated walking support frame.

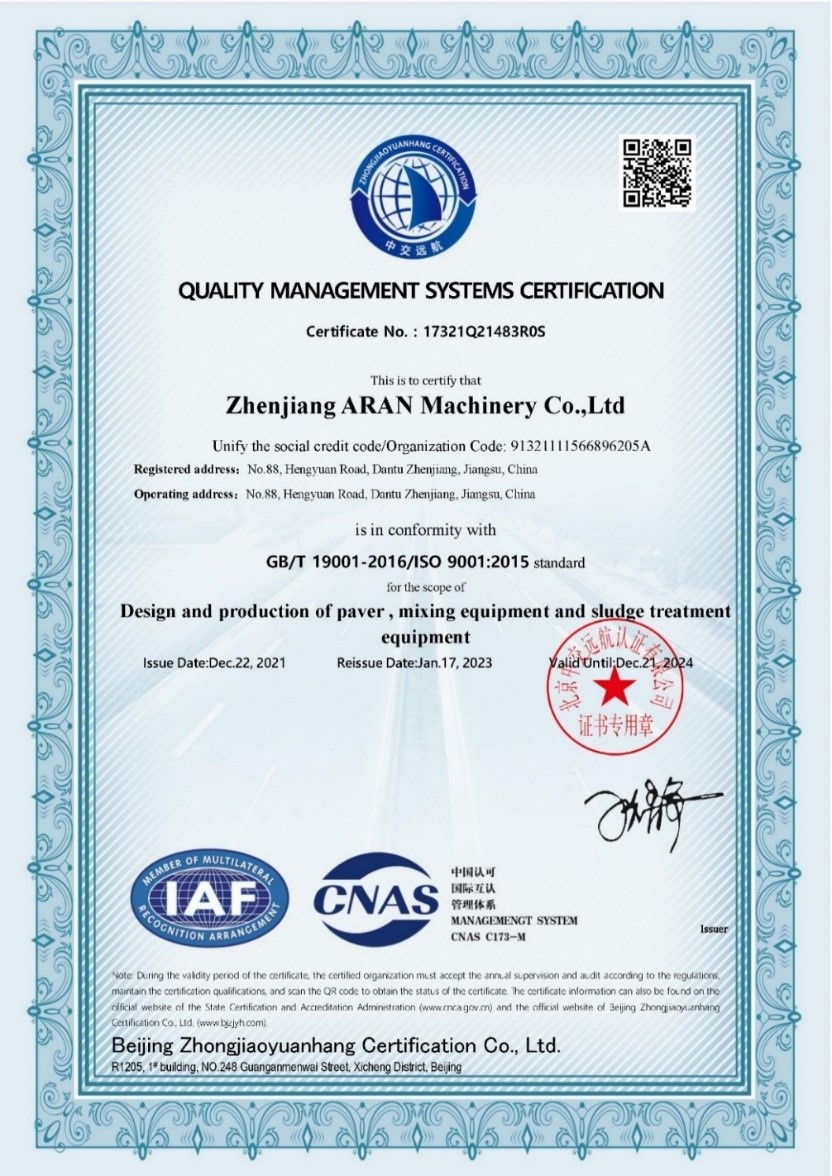

ISO Certification

CE Certification

After-sales Service:

Through cooperation, integration and reorganization, ARAN Company comprehensively improves its technical strength, and forms a new leap-forward development mechanism.

ARAN company will be in line with the enterprise concept of "Creating Value for Users" and enhance the core competitiveness of the enterprise, to achieve a new growth of Zhenjiang Aran Machinery Co., LTD

Product After-Sales Service Commitment

The Manufacturer will guarantee the quality of the equipment for a period of 12 months after payment is made (except regular consumption, engine parts, and consumables). In the warranty period, the Seller shall fully guarantee the operation of the equipment. In the warranty period, if any quality failure or damage occurs during the operation of the equipment, the Seller shall deliver the same spare parts to the user by air at the Seller's expense.

After the concrete paver is sold, at the request of the end user, professional service engineers from domestic or overseas mobile service stations will be sent to the site free of charge for installation, commissioning and technical training for 15 days. Round-trip airfare to the job site and local transportation costs for professional service personnel will be borne by the user. In addition, if the buyer's project requires additional technical services after the commissioning and technical training is completed, the seller will arrange for its service engineer to extend the stay or visit the site.

The company will continue to optimize products and provide service guarantee. After receiving the buyer's service demand notice, we will provide a written reply within 24 hours, propose the corresponding handling method, and deliver the parts by air or express to the user's site in the shortest possible time, so that our overseas users can enjoy lifelong technical service and spare parts supply.

Quality Assurance for Production Process and Manufacturing

Adhering to the principle of "All for the Users", the company provides equipment customization services according to the user needs. Based on advanced foreign technology, combined with the actual domestic conditions of road construction, Zhenjiang Aran has continuously improved and perfected its product design, and has developed a series of paves and mixing equipment product groups. Meanwhile, the company has also mastered the skills to develop new types of road construction products. With its leading technology, innovative spirit, reliable quality, and service guarantee, Zhenjiang Aran is now marketing its products worldwide. In China, Africa, Eastern Europe, India, Latin America, the Middle East, Russia, and Southeast Asia, Zhenjiang Aran is helping build a beautiful future for the world.

Going Global
