Slip Form Equipment
ACP900S Customized slip form equipment specifications
Items | Units | Technical parameters |
Width | mm | 2000 |
Height | mm | 1000 |
Shape | Configured as required by the user | |
Width tolerance | mm | ≤±5 |
Height tolerance | mm | ≤±5 |
Grade roughness | mm | ≤±3/3m ruler |
linear deviation | mm | ≤±5 |
slump | mm | 15~64 (the slump in 12~ 25mm when paving the barrier and other high wall) |
Note: If the user needs to change or replace any parts, please purchase them from the Company or authorized dealer to ensure that your machine runs properly.
Performance Characteristics:
ACP900 slip form equipment machines are designed with full hydraulic drive, centralized computer control with real-time monitoring and self-diagnostic capabilities, and auto levelling and tracing systems.
This innovative, advanced and practical machine of high standard is a key specialty equipment for the construction of high-speed railway and concrete road.
Features
Engine
Cummins water-cooled engine, powerful, high-torque reservation,low fuel consumption, emission in conformity with Europe environment.
Vibration Device
Super-high frequency, strong vibration, high density of top-side paving
Auto Levelling System

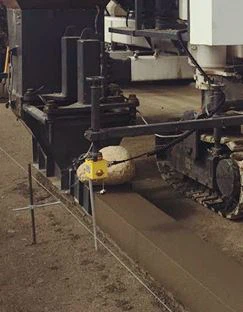

Auto levelling and tracing systems ensures paving surface flatness and road straightness.
Scraping Plate
Controlled through two hydraulic cylinders to control concrete quantity incoming to shaping-template, which could go up & down wholly or up & down independently at either lh or rh.
Travelling System
Three hydraulic-drive crawlers and microcomputer control ensure pre-set constant speed, correct straight-line running and smooth steering at bends.
Centralized Lubrication
Centralized lubrication can auto. Charge lubrication grease to high-temperature and motive components, lengthen wear-out period effectively, greatly improve reliability of tamper and feeding.
Advantages
Zhenjiang ARAN Machinery Co., Ltd. inherited the original technology of Zhenjiang Road Machinery Company’s products and has been constantly improving product performance and quality. 3D computer-aided design technology has been fully adopted in the company. With strong ability of independent innovation and development, the company has a number of patents granted. Zhenjiang ARAN provides reliable quality assurance for the mass production of high-tech road machinery, and necessary conditions for the research and development of new products, experimental work and high-tech industrialization.
Action Guidelines:
Highly maintain team cohesion, give full play to team spirit, take scientific and technological innovation as a powerful driving force, make full use of technical advantages, innovate marketing methods, make special and exquisite features, make Zhenjiang Aran machinery level to a higher level.
Application Scenes

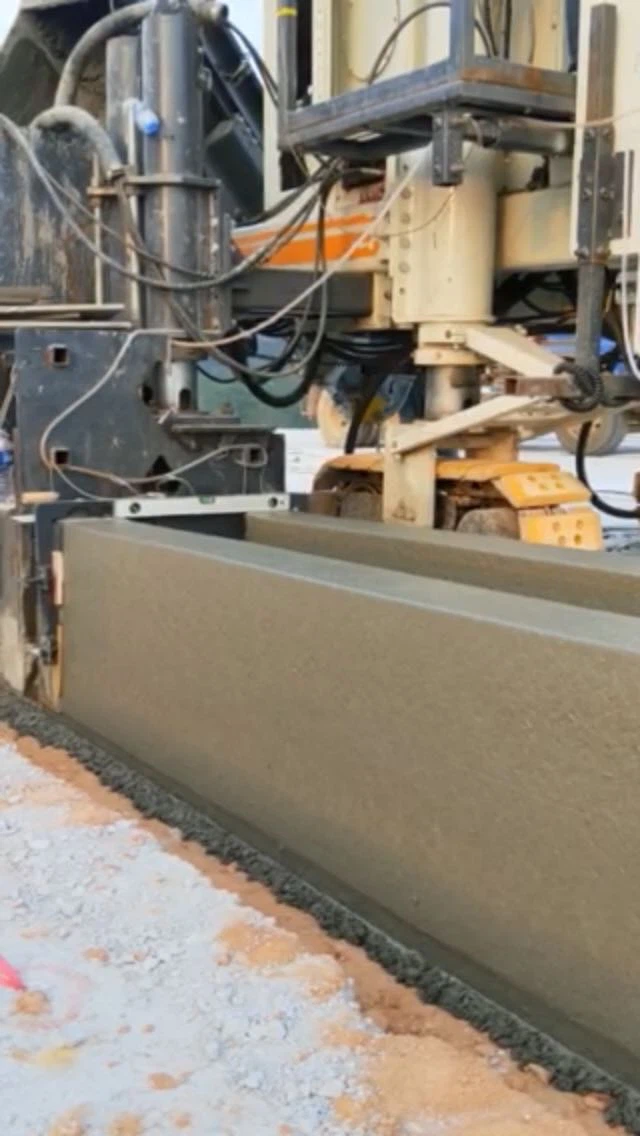

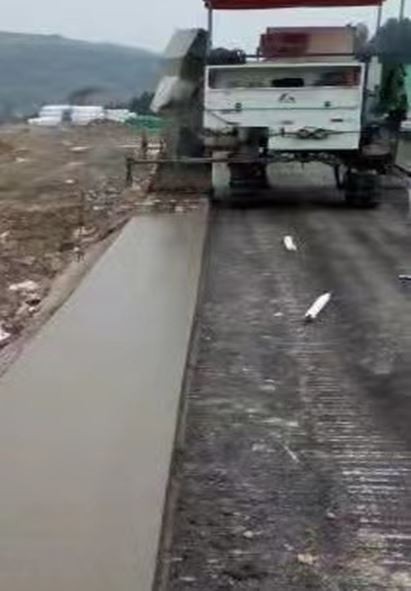

Slipformed pavement with even surface and good compactness.
Working Principle:

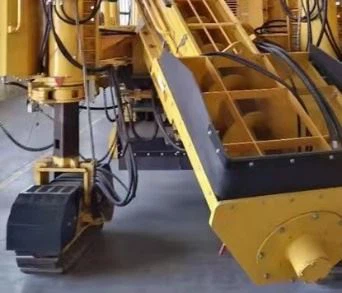

The concrete truck pours concrete mixture in front of the spreader; the paver moves forward at a certain speed; the working mechanism begins to work. The screw spreader separates the piled concrete along the left and right directions and evenly distributes it in front of the scraping plate. The temporary scraping plate, with the height hydraulically adjustable, scrapes the cement concrete to the required pre-paving thickness. The frequency conversion plug-in vibrating rod vibrates at a certain frequency to expel air out that blends in the concrete during mixing and then to eliminate pores.
The slipform paver can pave roads to ideal compaction, and form a slurry pool layer with a certain thickness on the surface. With the forwarding of the paver, the screeding and forming of the road is completed.
Two options of goods loading for sea transportation:

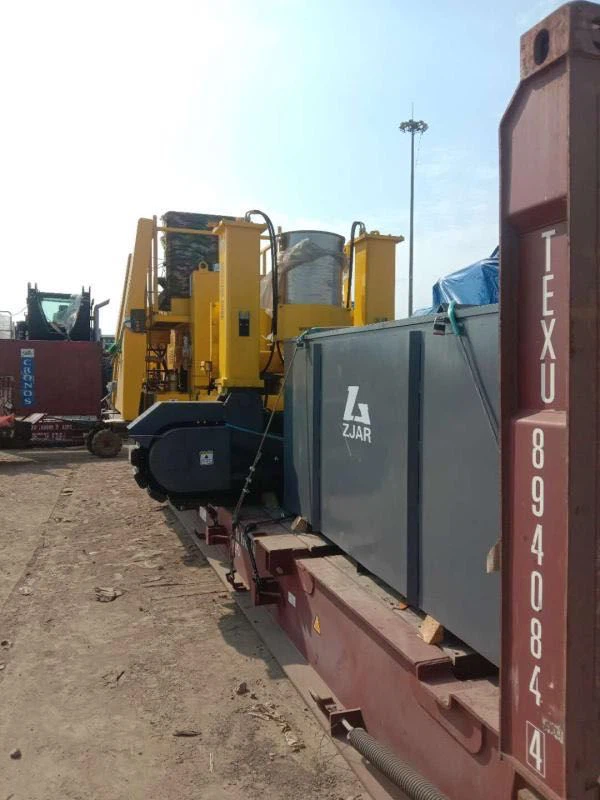

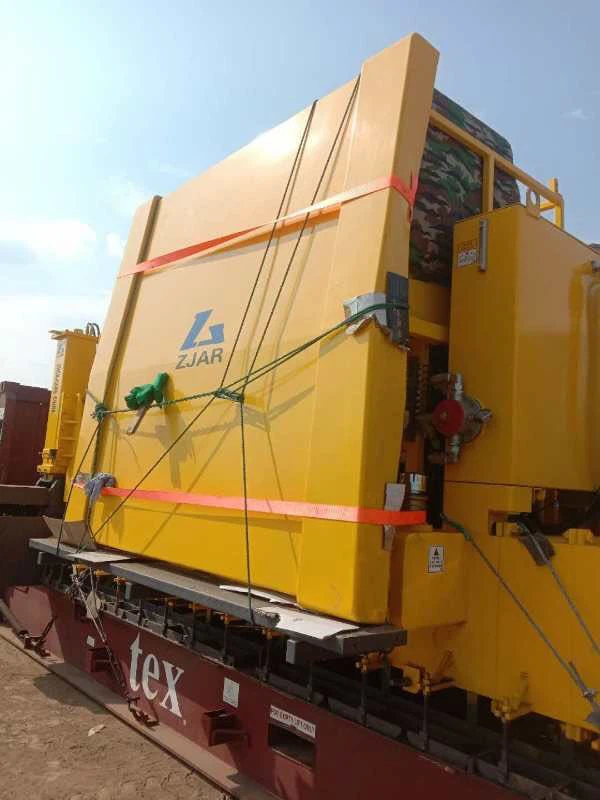

No need to remove large size parts such as the crawler track; whole machine shipped in the flat rack container; when transported to the construction site, it can work after mounting a small number of accessories, as shown in the Pic above.

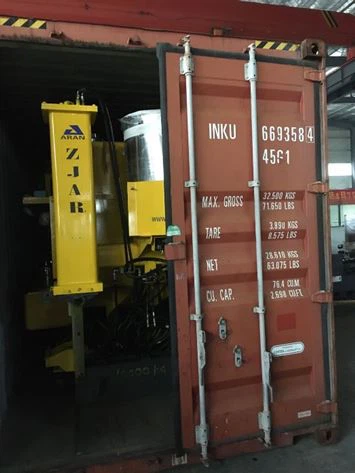

Disassemble the crawler track of the whole machine equipment into independent small parts and put into the container respectively. When delivered to the work site, there is a lot of assembly work before it can be put into construction.
Goods loading for land transportation

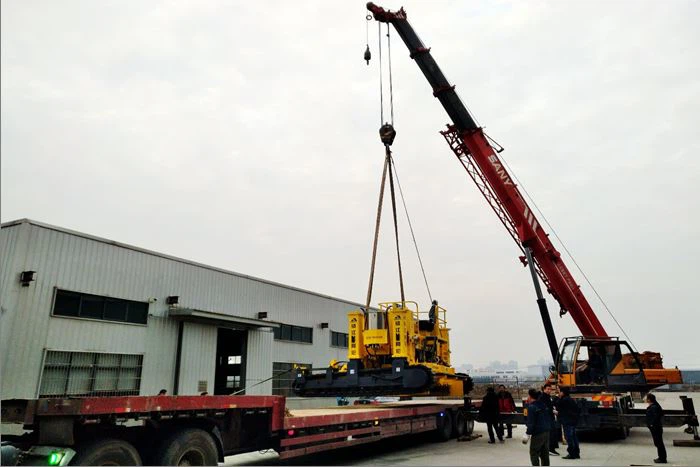

Lift the paver onto the platform trailer
Drive the paver onto the platform trailer from the side-mounted dedicated walking support frame.
Long distance road transport by platform trailer
ISO certificate
CE certificate
After-sales Services:
Through share cooperation and integration and reorganization, Zhenjiang ARAN strengthens its staying power, comprehensively improves its comprehensive strength, and forms a new leap-forward development mechanism.
Zhenjiang ARAN will be in line with the enterprise concept of "Creating Value for Users", enhance the core competitiveness of the enterprise, in order to achieve the new leap of Zhenjiang ARAN Machinery Co.,LTD.
After-Sales Service Commitment
The Manufacturer will guarantee the quality of the equipment for a period of 12 months after payment is made (except regular consumption, engine parts, and consumables). In the warranty period, the Seller shall fully guarantee the operation of the equipment. In the warranty period, if any quality failure or damage occurs during the operation of the equipment, the Seller shall deliver the same spare parts to the user by air at the Seller's expense.
Once the concrete paver is sold, a professional service engineer from a domestic or overseas mobile service station will be dispatched to the site free of charge for installation, commissioning and technical training for a period of 15 days at the request of the end users. The round-trip air ticket to the work site and local transportation expenses of the professional service personnel will be borne by the user. Moreover, if additional technical services are required for the Buyer's project after commissioning and technical training is completed, the Seller will arrange for its service engineer to extend the stay or pay a visit to the site.
The company will continue to optimize the products and provide a service guarantee. Upon receipt of the Buyer's notice of demand for service, a reply in writing will be offered within 24 hours to put forward the corresponding treatment method, and parts will be sent to the User's site by air or express delivery in the shortest time, so that our overseas users can enjoy lifetime technical services and supply of spare parts.
Production Technology, Manufacturing Quality Assurance.
Going Global
