Slipform Concrete Paving Machine

Customized slipform concrete paving Process Specifications

* ： Option--The paving width is widened by 250mm or 300mm interval. It is customized by the customer according to the actual construction requirements.

**：option 1 -- QSB6.7-C220-30, Cummins, 163 kW/2200rpm;

***：option -QSB6.7-C260-30, Cummins, 194 kW/2200rpm

All information and specifications are correct at the time of print and are subject to change without prior notice.

Performance Characteristics

SF6000S/AHT7500S heavy duty slip form concrete paver is specially developed based on the advanced technology of US Pav-Saver sliding mode cement paver by our company to meet the needs for airport and heavy-duty cement pavement construction and improve the construction quality and speed of large thickness (the thickness of one-time paving is more than 50cm) cement concrete pavement.

Customized slipform concrete paving Machine are designed with full hydraulic drive, centralized computer control with real-time monitoring and self-diagnostic capabilities, and auto levelling and tracing systems.

This innovative, advanced and practical machine of high standard is a key specialty equipment for the construction of high-speed railway and concrete road.

● SF6000S/AHT7500S concrete paving machines are suitable for the construction of high-speed railway support layer and concrete road.

● Simultaneous operations of spreading, scraping, vibrating, tamping and extruding at the same time when paving support layer and concrete road.

● Full hydraulic independent drive, micro-computer with display and self-diagnostic capability.

● Auto levelling and tracing systems to ensure paving flatness, straightness and smoothness at road bends.

● Ergonomically designed with smart controls for operational comfort and ease.

● Imported key components to ensure machine reliability and prolong service life of the paver.

Features

Engine

Volvo / Cummins water-cooled engine, powerful, high-torque reservation, low fuel consumption, emission in conformity with Europe environment.

Vibration Device

Super-high frequency, strong vibration, high density of top-side paving

 Auto Levelling System

Auto levelling and tracing systems ensures paving surface flatness and road straightness.

Scraping Plate

Controlled through two hydraulic cylinders to control concrete quantity incoming to shaping-template, which could go up & down wholly or up & down independently at either lh or rh.

Travelling System

Two hydraulic-drive crawlers and microcomputer control ensure pre-set constant speed, correct straight-line running and smooth steering at bends

Centralized Lubrication

Centralized lubrication can auto. Charge lubrication grease to high-temperature and motive components, lengthen wear-out period effectively, greatly improve reliability of tamper and feeding.

Advantages

Zhenjiang ARAN Machinery Co., Ltd. inherited the original technology of Zhenjiang Road Machinery Company's products and has been constantly improving product performance and quality. 3D computer-aided design technology has been fully adopted in the company. With strong ability of independent innovation and development, the company has a number of patents granted. Zhenjiang ARAN provides reliable quality assurance for the mass production of high-tech road machinery, and necessary conditions for the research and development of new products, experimental work and high-tech industrialization.

Action Guidelines:

Highly maintain team cohesion, give full play to team spirit, take scientific and technological innovation as a powerful driving force, make full use of technical advantages, innovate marketing methods, make special and exquisite features, make Zhenjiang Aran machinery level to a higher level.

Application Scenes

Airport construction

Slipformed pavement with even surface and good compactness

AHT7500S one-step forming with good and neat corner and edge

Precise operation with the automatic leveling system leads to great evenness of pavement surface.

Placement of middle dowel bars

Application of the mechanism for automatically inserting pull bars

Working Principle:

The concrete truck pours concrete mixture in front of the spreader; the paver moves forward at a certain speed; the working mechanism begins to work. The screw spreader separates the piled concrete along the left and right directions and evenly distributes it in front of the scraping plate. The temporary scraping plate, with the height hydraulically adjustable, scrapes the cement concrete to the required pre-paving thickness. The frequency conversion plug-in vibrating rod vibrates at a certain frequency to expel air out that blends in the concrete during mixing and then to eliminate pores.

The slipform paver can pave roads to ideal compaction, and form a slurry pool layer with a certain thickness on the surface. With the forwarding of the paver, the screeding and forming of the road is completed.

Coordinated paving operation leads to high efficiency

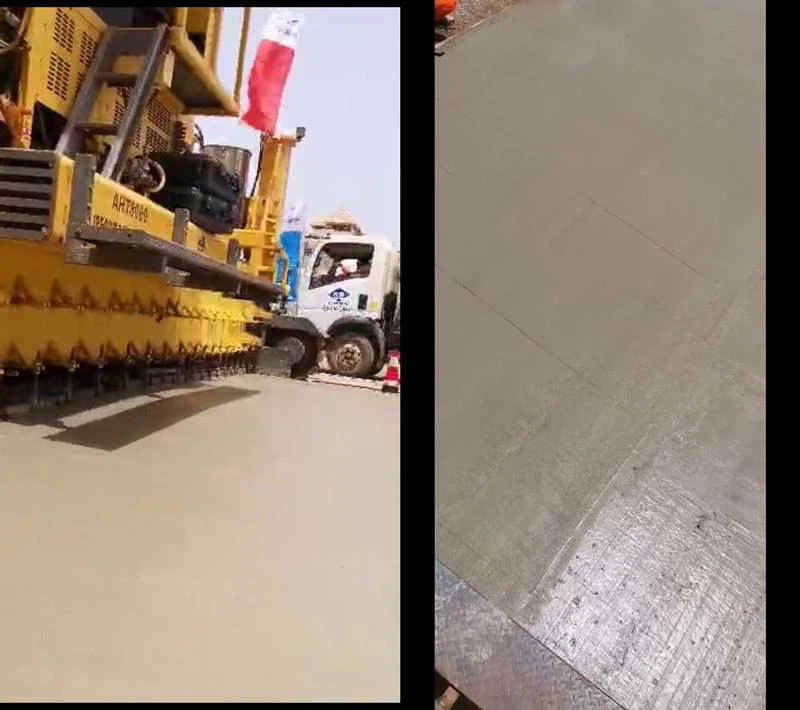

Senegal: Construction pavement of Dakar Expressway by CRBC

Packing and Shipping

Two options of goods loading for sea transportation:

No need to remove large size parts such as the crawler track; whole machine shipped in the flat rack container; when transported to the construction site, it can work after mounting a small number of accessories, as shown in the Pic above.

Disassemble the crawler track of the whole machine equipment into independent small parts and put into the container respectively. When delivered to the work site, there is a lot of assembly work before it can be put into construction.

Loading for Land Transportation:

Lift the paver onto the platform trailer

Drive the paver onto the platform trailer from the side-mounted dedicated walking support frame.

Long distance road transport by flatform trailer

ISO certificate

CE certificate

After-sales Services:

Zhenjiang ARAN Machinery Co., Ltd. inherited the original technology of Zhenjiang Road Machinery Company's products and has been constantly improving product performance and quality. 3D computer-aided design technology has been fully adopted in the company. With strong ability of independent innovation and development, the company has a number of patents granted. Zhenjiang ARAN provides reliable quality assurance for the mass production of high-tech road machinery, and necessary conditions for the research and development of new products, experimental work and high-tech industrialization. Through share cooperation and integration and reorganization, Zhenjiang ARAN strengthens its staying power, comprehensively improves its comprehensive strength, and forms a new leap-forward development mechanism.
